Azure Hub-and-Spoke Architecture Using Terraform

Description

To design and deploy a secure, scalable Azure infrastructure using a hub-and-spoke topology. This project leverages Terraform for Infrastructure-as-Code (IaC) and includes network segmentation, centralized firewall, controlled access via jumpbox, and log analytics integration.

Structure

hub-spoke-architecture/
├── provider.tf
├── main.tf
├── variables.tf
├── vnet.tf
├── firewall.tf
├── peerings.tf
├── routes.tf
├── jumpbox.tf
├── webvm.tf
├── appvm.tf
└── log_analytics.tf

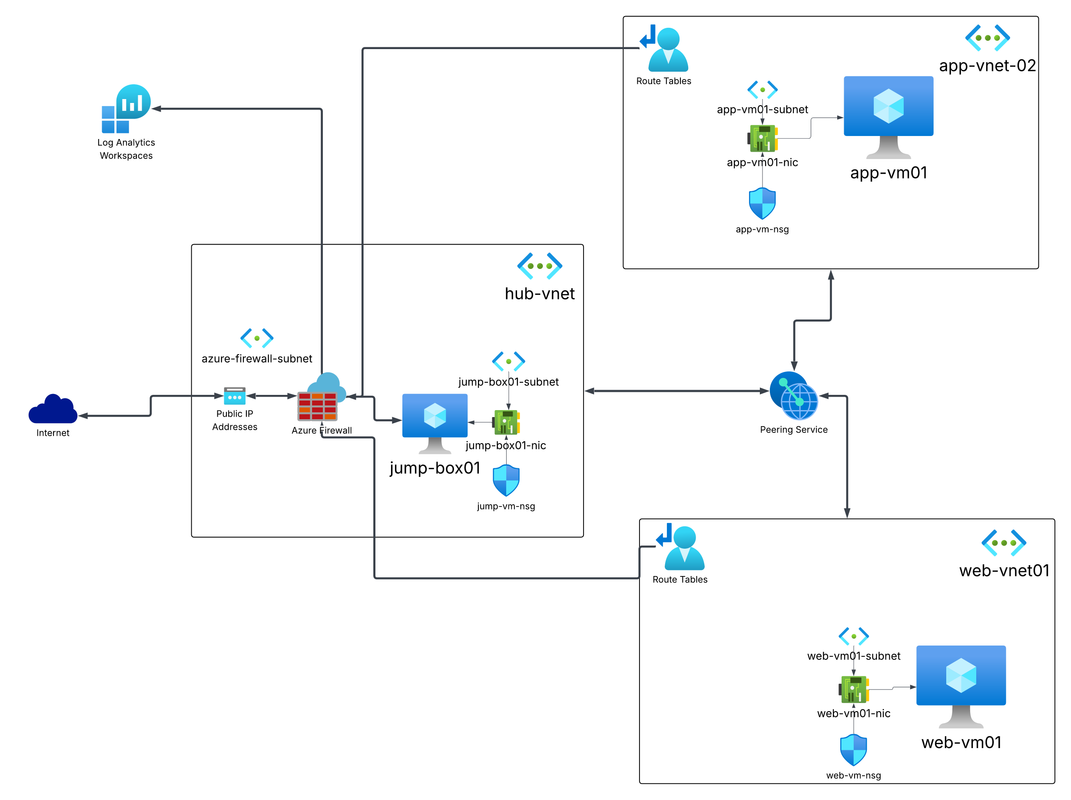

Diagram

Architecture

What This Architecture Enables

This infrastructure design delivers centralized, secure, and controlled access across the Azure environment, with the following key outcomes:

Access Control

SSH Access to Jumpbox via Firewall NAT:

Users can securely connect to the Jumpbox VM (private subnet) using the public IP of the Azure Firewall via a NAT rule on port 9494.
No public IP is assigned directly to any VM.

Internal SSH to Other VMs:

Once connected to the Jumpbox, users can securely SSH into:
Web VM in web-subnet
App VM in app-subnet

Direct access to internal VMs from the internet is blocked.

Internet Egress Security

All Outbound Internet Traffic Routed Through Azure Firewall:

Custom route tables ensure that all egress traffic from Jumpbox, Web VM, and App VM flows through the Azure Firewall.
This allows centralized logging, traffic control, and future use of Application or Network Rules for filtering or inspection.

Network Segmentation & Connectivity

Hub-and-Spoke VNet Peering:

VMs in Spoke VNets (Web and App) communicate with the Hub VNet using VNet peering.
Peering is configured bidirectionally to allow seamless, low-latency internal traffic between Jumpbox and other VMs.

East-West Traffic Visibility:

Internal communications (Jumpbox → Web/App VMs) are visible and controllable through the Firewall if required.

Monitoring & Security Analytics

Log Analytics Workspace Integration:

Azure resources (NSGs, VMs, Firewall) are connected to Log Analytics for Traffic logs, Network security alerts

Future-ready for Azure Sentinel:

The Log Analytics Workspace can be easily integrated with Azure Sentinel for SIEM and advanced threat detection.(if required)

Scalability & Maintainability

Infrastructure is modular and written using Terraform IaC:

Easy to replicate or extend to new regions or environments (e.g., staging, prod)
Simplifies VM scaling, NSG rule additions, or routing logic adjustments

Terraform Scripts

provider.tf

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~>3.0"
    }
  }
}
provider "azurerm" {
  features {}
}

main.tf

resource "azurerm_resource_group" "hub-spoke-rg01" {
  name     = var.resource_group_name
  location = var.location
}

resource "azurerm_role_assignment" "network_contributor" {
  scope                = azurerm_resource_group.hub-spoke-rg01.id
  role_definition_name = "Network Contributor"
  principal_id         = "id of the user account(s)"

}

variables.tf

variable "location" {
  description = "Azure Region"
  default     = "East US"
}

variable "resource_group_name" {
  description = "Name of the resource group"
  default     = "hub-spoke-rg01"
}

vnets.tf

#hub-vnet and subnets
resource "azurerm_virtual_network" "hub-vnet" {
  name                = "hub-vnet"
  location            = var.location
  resource_group_name = var.resource_group_name
  address_space       = ["10.0.0.0/16"]
}

resource "azurerm_subnet" "AzureFirewallSubnet" {
  name                 = "AzureFirewallSubnet"
  resource_group_name  = var.resource_group_name
  virtual_network_name = azurerm_virtual_network.hub-vnet.name
  address_prefixes     = ["10.0.1.0/24"]
}

resource "azurerm_subnet" "jump-box01-subnet" {
  name                 = "jump-box01-subnet"
  resource_group_name  = var.resource_group_name
  virtual_network_name = azurerm_virtual_network.hub-vnet.name
  address_prefixes     = ["10.0.2.0/24"]
}

#app vnet and subnets

resource "azurerm_virtual_network" "app-vnet-01" {
  name                = "app-vnet-01"
  location            = var.location
  resource_group_name = var.resource_group_name
  address_space       = ["10.1.0.0/16"]
}

resource "azurerm_subnet" "app-vm01-subnet" {
  name                 = "app-vm01-subnet"
  resource_group_name  = var.resource_group_name
  virtual_network_name = azurerm_virtual_network.app-vnet-01.name
  address_prefixes     = ["10.1.1.0/24"]
}

#web vnet and subnets

resource "azurerm_virtual_network" "web-vnet01" {
  name                = "web-vnet01"
  resource_group_name = var.resource_group_name
  location            = var.location
  address_space       = ["10.2.0.0/16"]
}
resource "azurerm_subnet" "web-vm01-subnet" {
  name                 = "web-vm01-subnet"
  resource_group_name  = var.resource_group_name
  virtual_network_name = azurerm_virtual_network.web-vnet01.name
  address_prefixes     = ["10.2.1.0/24"]
}
resource "azurerm_subnet" "web-vm02-subnet" {
  name                 = "web-vm02-subnet"
  resource_group_name  = var.resource_group_name
  virtual_network_name = azurerm_virtual_network.web-vnet01.name
  address_prefixes     = ["10.2.2.0/24"]

}

firewall.tf

# public IP for azure firewall

resource "azurerm_public_ip" "hub-spoke-firewall01-pub-ip01" {
  name                = "hub-spoke-firewall01-pub-ip01"
  location            = var.location
  resource_group_name = var.resource_group_name
  allocation_method   = "Static"
  sku                 = "Standard"
}

#azure firewall

resource "azurerm_firewall" "hub-spoke-firewall01" {
  name                = "hub-spoke-firewall01"
  location            = var.location
  resource_group_name = var.resource_group_name
  sku_name            = "AZFW_VNet"
  sku_tier            = "Standard"
  ip_configuration {
    name                 = "hub-spoke-firewall01-ipconfig"
    subnet_id            = azurerm_subnet.AzureFirewallSubnet.id
    public_ip_address_id = azurerm_public_ip.hub-spoke-firewall01-pub-ip01.id
  }
}

resource "azurerm_firewall_nat_rule_collection" "hub-spoke-firewall01-nat01" {
  name                = "hub-spoke-firewall01-nat01"
  azure_firewall_name = azurerm_firewall.hub-spoke-firewall01.name
  resource_group_name = var.resource_group_name
  priority            = 120
  action              = "Dnat"

  rule {
    name                  = "azfw-jumpbox-dnat01"
    protocols             = ["TCP"]
    source_addresses      = ["*"]
    destination_addresses = [azurerm_public_ip.hub-spoke-firewall01-pub-ip01.ip_address]
    destination_ports     = ["9494"]
    translated_address    = azurerm_network_interface.jump-box01-nic.private_ip_address
    translated_port       = "22"
  }
}

resource "azurerm_firewall_network_rule_collection" "firewall-internet-outbound" {
  name                = "firewall-internet-outbound"
  azure_firewall_name = azurerm_firewall.hub-spoke-firewall01.name
  resource_group_name = var.resource_group_name
  priority            = 100
  action              = "Allow"
  rule {
    name                  = "firewall-internet-outbound-rule"
    protocols             = ["Any"]
    source_addresses      = ["10.0.2.0/24","10.1.0.0/16"]
    destination_addresses = ["0.0.0.0/0"]
    destination_ports     = ["*"]
  }

}
#firewall log

resource "azurerm_monitor_diagnostic_setting" "hub-spoke-fw-diag" {
  name                       = "hub-spoke-fw-diag"
  target_resource_id         = azurerm_firewall.hub-spoke-firewall01.id
  log_analytics_workspace_id = azurerm_log_analytics_workspace.hub-spoke-analytics01.id

  enabled_log {
    category = "AzureFirewallApplicationRule"
  }
  enabled_log {
    category = "AzureFirewallNetworkRule"
  }
  enabled_log {
    category = "AzureFirewallDnsProxy"
  }
}

peerings.tf

#web-hub

resource "azurerm_virtual_network_peering" "web-hub" {
  name                      = "web-hub"
  resource_group_name       = var.resource_group_name
  virtual_network_name      = azurerm_virtual_network.web-vnet01.name
  remote_virtual_network_id = azurerm_virtual_network.hub-vnet.id
  allow_forwarded_traffic   = true
  allow_gateway_transit     = false
  use_remote_gateways       = false
}

#hub-web

resource "azurerm_virtual_network_peering" "hub-web" {
  name                         = "hub-web"
  resource_group_name          = var.resource_group_name
  virtual_network_name         = azurerm_virtual_network.hub-vnet.name
  remote_virtual_network_id    = azurerm_virtual_network.web-vnet01.id
  allow_forwarded_traffic      = true
  allow_gateway_transit        = false
  allow_virtual_network_access = false
}

#app-hub

resource "azurerm_virtual_network_peering" "app-hub" {
  name                      = "app-hub"
  resource_group_name       = var.resource_group_name
  virtual_network_name      = azurerm_virtual_network.app-vnet-01.name
  remote_virtual_network_id = azurerm_virtual_network.hub-vnet.id
  allow_forwarded_traffic   = true
  allow_gateway_transit     = false
  use_remote_gateways       = false
}

#hub-app

resource "azurerm_virtual_network_peering" "hub-app" {
  name                         = "hub-app"
  resource_group_name          = var.resource_group_name
  virtual_network_name         = azurerm_virtual_network.hub-vnet.name
  remote_virtual_network_id    = azurerm_virtual_network.app-vnet-01.id
  allow_forwarded_traffic      = true
  allow_gateway_transit        = false
  allow_virtual_network_access = false
}

routes.tf

# routes for jump-box01

resource "azurerm_route_table" "jump-box01-route" {
  name                = "jump-box01-route"
  location            = var.location
  resource_group_name = var.resource_group_name

  route {
    name                   = "jumpbox-internet"
    address_prefix         = "0.0.0.0/0"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}

resource "azurerm_subnet_route_table_association" "jump-box01-rta" {
  subnet_id      = azurerm_subnet.jump-box01-subnet.id
  route_table_id = azurerm_route_table.jump-box01-route.id
}

# routes for web-vm01

resource "azurerm_route_table" "web-vm01-route" {
  name                = "web-vm01-route"
  location            = var.location
  resource_group_name = var.resource_group_name

  route {
    name                   = "web-vm01-internet"
    address_prefix         = "0.0.0.0/0"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}

resource "azurerm_subnet_route_table_association" "web-vm01-rta" {
  subnet_id      = azurerm_subnet.web-vm01-subnet.id
  route_table_id = azurerm_route_table.web-vm01-route.id
}

# routes for app-vm01

resource "azurerm_route_table" "app-vm01-route" {
  name                = "app-vm01-route"
  location            = var.location
  resource_group_name = var.resource_group_name

  route {
    name                   = "app-vm01-internet"
    address_prefix         = "0.0.0.0/0"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}

resource "azurerm_subnet_route_table_association" "app-vm01-rta" {
  subnet_id      = azurerm_subnet.app-vm01-subnet.id
  route_table_id = azurerm_route_table.app-vm01-route.id
}

jumpbox.tf

# jump vm - nic

resource "azurerm_network_interface" "jump-box01-nic" {
  name                = "jump-box01-nic"
  resource_group_name = var.resource_group_name
  location            = var.location
  ip_configuration {
    name                          = "jump-box01-nic-ip"
    subnet_id                     = azurerm_subnet.jump-box01-subnet.id
    private_ip_address_allocation = "Dynamic"
  }
}

#jum vm

resource "azurerm_linux_virtual_machine" "jump-box01" {
  name                            = "jump-box01"
  location                        = var.location
  resource_group_name             = var.resource_group_name
  size                            = "Standard_B1s"
  admin_username                  = "username"
  admin_password                  = "password"
  disable_password_authentication = "false"
  network_interface_ids           = [azurerm_network_interface.jump-box01-nic.id]

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-focal"
    sku       = "20_04-lts"
    version   = "latest"
  }

}


resource "azurerm_network_security_group" "jump-vm-nsg" {
  name                = "jump-vm-nsg"
  location            = var.location
  resource_group_name = var.resource_group_name
  security_rule {
    name                       = "allow-ssh-outbound"
    priority                   = 130
    direction                  = "Outbound"
    protocol                   = "Tcp"
    access                     = "Allow"
    source_address_prefixes    = [azurerm_subnet.jump-box01-subnet.address_prefixes[0]]
    source_port_range          = "*"
    destination_address_prefix = "VirtualNetwork"
    destination_port_range     = "22"
  }
  security_rule {
    name                       = "deny-all-outbound"
    priority                   = 200
    direction                  = "Outbound"
    access                     = "Deny"
    protocol                   = "*"
    source_port_range          = "*"
    destination_port_range     = "*"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }
  security_rule {
    name                       = "allow-outbound-to-firewall"
    priority                   = 140
    direction                  = "Outbound"
    access                     = "Allow"
    protocol                   = "*"
    source_port_range          = "*"
    destination_port_ranges    = ["80", "443", "53"]
    source_address_prefix      = "*"
    destination_address_prefix = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}


resource "azurerm_network_interface_security_group_association" "jump-nic-nsg" {
  network_interface_id      = azurerm_network_interface.jump-box01-nic.id
  network_security_group_id = azurerm_network_security_group.jump-vm-nsg.id
}

webvm.tf

#web-vm01 nic

resource "azurerm_network_interface" "web-vm01-nic" {
  name                = "web-vm01-nic"
  resource_group_name = var.resource_group_name
  location            = var.location

  ip_configuration {
    name                          = "web-vm01-nic-ip"
    subnet_id                     = azurerm_subnet.web-vm01-subnet.id
    private_ip_address_allocation = "Dynamic"
  }
}

#nsg

resource "azurerm_network_security_group" "web-vm-nsg" {
  name                = "web-vm-nsg"
  location            = var.location
  resource_group_name = var.resource_group_name
  security_rule {
    name                       = "allow-ssh"
    priority                   = "110"
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    source_address_prefix      = azurerm_subnet.jump-box01-subnet.address_prefixes[0]
    destination_port_range     = "22"
    destination_address_prefix = "*"
  }
      security_rule {
    name                       = "allow-internet-firewall"
    priority                   = 110
    direction                  = "Outbound"
    protocol                   = "Tcp"
    access                     = "Allow"
    source_port_range          = "*"
    source_address_prefix      = "*"
    destination_port_range     = "*"
    destination_address_prefix = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}

resource "azurerm_network_interface_security_group_association" "web-nic-nsg" {
  network_interface_id      = azurerm_network_interface.web-vm01-nic.id
  network_security_group_id = azurerm_network_security_group.web-vm-nsg.id
}

resource "azurerm_linux_virtual_machine" "web-vm01" {
  name                            = "web-vm01"
  resource_group_name             = var.resource_group_name
  location                        = var.location
  size                            = "Standard_B1s"
  admin_username                  = "username"
  admin_password                  = "password"
  network_interface_ids           = [azurerm_network_interface.web-vm01-nic.id]
  disable_password_authentication = "false"

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-focal"
    sku       = "20_04-lts"
    version   = "latest"
  }
}

appvm.tf

#app-vm-nic

resource "azurerm_network_interface" "app-vm01-nic" {
  name                = "app-vm01-nic"
  resource_group_name = var.resource_group_name
  location            = var.location
  ip_configuration {
    name                          = "app-vm01-nic-ip"
    subnet_id                     = azurerm_subnet.app-vm01-subnet.id
    private_ip_address_allocation = "Dynamic"
  }
}

#app-nsg

resource "azurerm_network_security_group" "app-vm-nsg" {
  name                = "app-vm-nsg"
  location            = var.location
  resource_group_name = var.resource_group_name
  security_rule {
    name                       = "allow-ssh"
    priority                   = 110
    direction                  = "Inbound"
    protocol                   = "Tcp"
    access                     = "Allow"
    source_port_range          = "*"
    source_address_prefix      = azurerm_subnet.jump-box01-subnet.address_prefixes[0]
    destination_port_range     = "22"
    destination_address_prefix = "*"
  }
    security_rule {
    name                       = "allow-internet-firewall"
    priority                   = 110
    direction                  = "Outbound"
    protocol                   = "Tcp"
    access                     = "Allow"
    source_port_range          = "*"
    source_address_prefix      = "*"
    destination_port_range     = "*"
    destination_address_prefix = azurerm_firewall.hub-spoke-firewall01.ip_configuration[0].private_ip_address
  }
}

resource "azurerm_network_interface_security_group_association" "app-nic-nsg" {
  network_interface_id      = azurerm_network_interface.app-vm01-nic.id
  network_security_group_id = azurerm_network_security_group.app-vm-nsg.id
}

resource "azurerm_linux_virtual_machine" "app-vm01" {
  name                            = "app-vm01"
  location                        = var.location
  resource_group_name             = var.resource_group_name
  network_interface_ids           = [azurerm_network_interface.app-vm01-nic.id]
  admin_username                  = "username"
  admin_password                  = "password"
  disable_password_authentication = "false"
  size                            = "Standard_B1s"

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-focal"
    sku       = "20_04-lts"
    version   = "latest"
  }
}

loganalytics.tf

resource "azurerm_log_analytics_workspace" "hub-spoke-analytics01" {
  name                = "hub-spoke-analytics01"
  location            = var.location
  resource_group_name = var.resource_group_name
  sku                 = "PerGB2018"
  retention_in_days   = "30"
}

Thanks for Reading!!.

Azure Hub-and-Spoke Architecture Using Terraform#

Description#

Structure#

Diagram#

What This Architecture Enables#

Access Control#

Internet Egress Security#

Network Segmentation & Connectivity#

Monitoring & Security Analytics#

Scalability & Maintainability#

Terraform Scripts#

provider.tf#

main.tf#

variables.tf#

vnets.tf#

firewall.tf#

peerings.tf#

routes.tf#

jumpbox.tf#

webvm.tf#

appvm.tf#

loganalytics.tf#
